Features

IFCWebServer



  • Out of the box support for all IFC official releases: IFCWebServer supports any valid IFC schema out of the box through a dynamic EXPRESS parser.

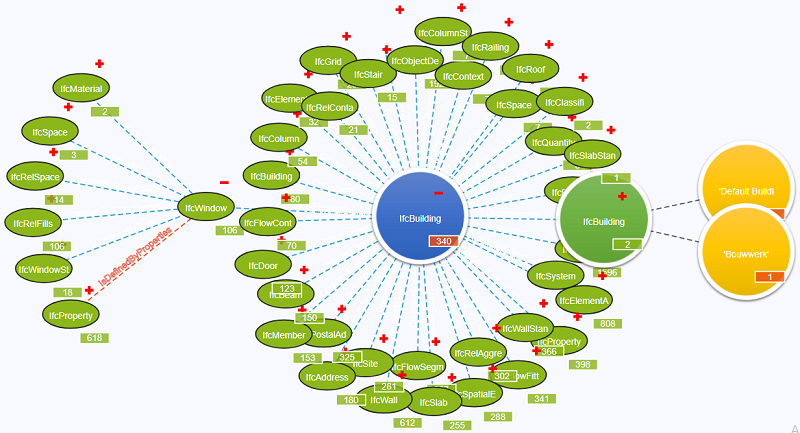

  • The only graph and connected data platform through IFC to Graph database converter: convert IFC models to Neo4j graph database for advanced queries and easy access to all information
  • Run simply any information take-off , queries or filters to extract information or sub-models: with few clicks the user can extract and filter a wide range of information without any deep know-how about IFC data model and and export the information into different standard formats (IFC, HTML, XML, CVS, JSON)
  • Simple and powerful Report engine : simple and interactive GUI for generating reports.
  • One-click automated tasks: complex queries and tasks can be automated through writing scripts, for example:
    • Extract and render space objects
    • Extract floors into separated models
    • Extract and render by layers
    • Extract COBie information
    • Convert main information in IFC model to SQL database
  • Extendable: users can easily extend the core functionality and customize almost everything
  • Domain Specific Language (DSL) for interacting with the server and write server scripts or plugins
  • Model View Definition support through mvdXML online viewer
  • Online IFC Schema documentation: Explore and compare IFC versions on the schema level


BIMViewer

  • Easy Navigation: simple interaction with the BIM model inside the web browser (rotate, zoom, pan, slick, etc. )
  • Information Access: full access to all meta information of model’s elements (model structure, CAD layers, groups, systems, object properties, classifications, materials)
  • Powerful Filtering:   filtering model elements through:
    • Model structure
    • IFC classes
    • Object type
    • Object material
    • Object properties
    • Layers
    • Systems
    • Groups
  • Enrich: Add new property set based on the IFC standard property sets and user-defined templates or edit the existing properties
  • Coordinate: Ability to visualize many IFC federated models in the same view
  • Export Partial Model: Instant exporting of filtered models as new IFC models (What you see is what you get)
  • Measure: Interactive Quantity take-off function
  • Customization:
    • Change the default color of objects (standard colors & custom color by object)
    • Change the IFC classes of objects
  • Default color profiles: Assign default colors based on different classification systems
  • Compare and visualize the differences between 2 IFC model versions
  • Collaborate:
    • Create and easy sharing of model views

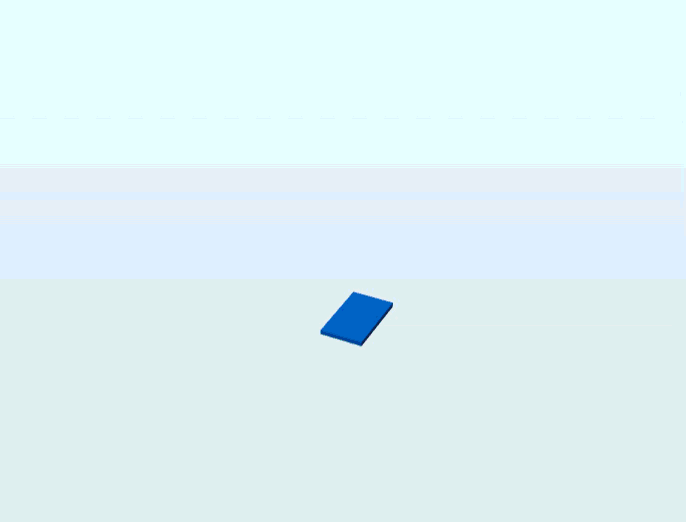

    • 4D animation of construction progress
